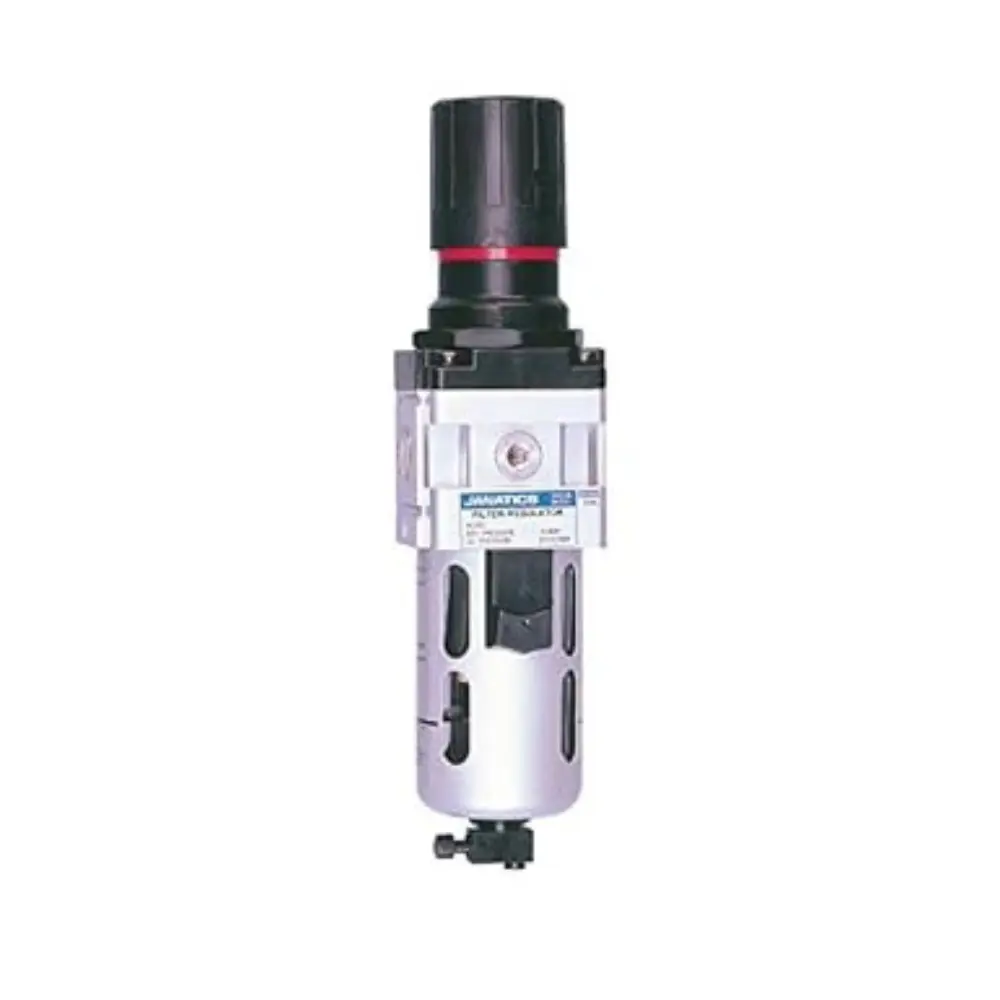

Janatics FRC
Filter Regulator Combination designed for reliable air preparation in industrial pneumatic systems. Provides efficient air filtration and precise pressure regulation to protect downstream components and ensure stable system performance. Suitable for machine automation, packaging lines, and general industrial applications.
Product Details
Model-wise Key Differences
| Model | Port Size | Gauge Port | Flow Rate (l/min) | Bowl Capacity (ml) | Weight (kg) |
|---|---|---|---|---|---|
| FRC 13 | G1/4 | G1/8 | 550 | 9 | 0.30 |
| FRC 14 | G3/8 | G1/8 | 1800 | 32 | 0.58 |
| FRC 15 | G1/2 | G1/8 | 3000 | 44 | 1.27 |
| FRC 17 (3/4″) | G3/4 | G1/4 | 4250 | 165 | 2.09 |
| FRC 17 (1″) | G1 | G1/4 | 5500 | 165 | 2.05 |
Common Specifications
| Parameter | Specification |
|---|---|
| Medium | Compressed air |
| Maximum Supply Pressure | 10 bar |
| Regulating Pressure Range | 0.2–2, 0.2–4, 0.5–7, 0.5–10 bar (Standard) |
| Filtration | 1, 5, 25, 40 (standard), 50, 100 µm |
| Ambient Temperature | −10°C to +50°C |
| Medium Temperature | +5°C to +50°C |
| Bowl Material | Polycarbonate |
| Installation | Vertical (as shown) |
| Materials of Construction | Aluminium, Bronze, Brass, Steel, Acetal, Polycarbonate, SS, Nitrile |
| Optional Accessories | Clamp, Modular mounting kit, Pressure gauge |
Notes
-
Flow rates are based on 7 bar supply pressure and 6 bar set pressure
Additional information
| FRC Model | FRC 13, FRC 14, FRC 15, FRC 17 (3/4"), FRC 17 (1") |
|---|---|
| Port Size | 1/4", 3/8", 1/2", 3/4", 1" |
